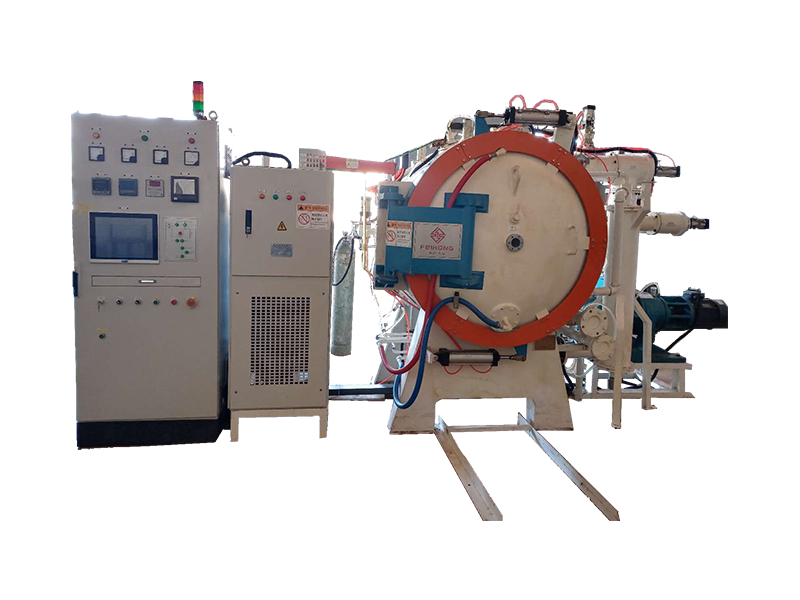

Vacuum sintering furnace
Zhengzhou Feilong vacuum sintering furnace is mainly used for vacuum sintering of hard alloy, ceramic material, powder injection molding, magnetic material, porous material, etc. Our company supports the manufacture of the following models (standard products). We also have excellent design team to support the design and development of various non-standard products.
Keywords:
Classification:
Vacuum sintering furnace
Product description
Zhengzhou Feilong vacuum sintering furnace is mainly used for vacuum sintering of hard alloy, ceramic material, powder injection molding, magnetic material, porous material, etc. Our company supports the manufacture of the following models (standard products). We also have excellent design team to support the design and development of various non-standard products.
| Model | FZSJ-50 | FZSJ-110 | FZSJ-160 | FZSJ-210 | FZSJ-330 |
| Effective working area(mm) | 450×300×300 | 600×400×400 | 750×500×500 | 900×600×600 | 1200×800×800 |
| Furnace loading capacity | 100kg | 200kg | 300kg | 500kg | 1000kg |
| Heating power | 50/90KW | 110/140KW | 160/190KW | 210/260KW | 330/390KW |
| Maximum temperature | 1300～2600℃ | ||||
| Temperature uniformity | ±5℃ | ||||
| Ultimate vacuum level | ≤4×10-1paor≤8×10-⁴pa | ||||
| Pressure rise rate | <0.6pa/h | ||||
| Air cooling pressure | <2bar | ||||
| Hot chamber structure | Round / Square | ||||
| Hot chamber material | Graphite/molybdenum-lanthanum alloy | ||||
| Control method | Manual / Automatic | ||||
Zhengzhou Feibong vacuum sintering furnace features: 1. with high temperature uniformity, internal (or external) circulation fan cooling speed, greatly improve production efficiency; 2. to adapt to the sintering of powder materials, vacuum system with slow pumping function; 3. intelligent temperature control instrument control temperature rise, temperature, constant temperature, to achieve automatic temperature control function. 4. 4. automatic fault alarm display, safety performance greatly improved 5. greatly improve the mechanical performance and service life.
Inquiry
Related Products
Vacuum brazing furnace is mainly used for high temperature brazing of automobile industry, aerospace, automobile oil cooler, low carbon steel, stainless steel and purple copper.1. Uniform welding, bright color, high uniformity of furnace temperature, simple operation, fully automatic control, small welding deformation, high productivity, fast cooling speed and high precision of temperature control. Our company supports the manufacture of the following models (standard products). We also have an excellent design team, which can support the design and development of various non-standard products.
Zhengzhou Feilong vacuum sintering furnace is mainly used for vacuum sintering of hard alloy, ceramic material, powder injection molding, magnetic material, porous material, etc. Our company supports the manufacture of the following models (standard products). We also have excellent design team to support the design and development of various non-standard products.
High temperature vacuum brazing furnace
High vacuum aluminum brazing furnace is mainly used for high temperature brazing of automobile industry, aerospace, automobile oil cooler, low carbon steel, stainless steel and purple copper.1. Uniform welding, bright color, high uniformity of furnace temperature, simple operation, fully automatic control, small welding deformation, high productivity, fast cooling speed and high precision of temperature control. Our company supports the manufacture of the following models (standard products). We also have an excellent design team that can support the design and development of various non-standard products.
Zhengzhou Feihong vacuum annealing furnace is mainly used for high temperature alloy steel, magnetic materials, non-ferrous metals, stainless steel, titanium alloy, etc., bright annealing of materials. Our company supports the manufacture of the following models (standard products). At the same time, our company also has an excellent design team, can support the design and development of various non-standard products.
Main application: Suitable for vacuum bright tempering of all kinds of parts after vacuum quenching.
Zhengzhou Feilong vacuum oil quenching furnace is mainly used for vacuum heat treatment, vacuum brazing and vacuum sintering of high speed steel, cold and hot work tool steel, martensitic stainless steel, elastic alloy, high temperature alloy, magnetic material and titanium alloy. The furnace is suitable for both mass production of the same steel grade and single or small batch production of multiple specifications and varieties, with good economy and versatility. Our company has excellent design and manufacturing team, which can manufacture according to the following standard models, and can also design and manufacture non-standard products according to customer requirements.
Zhengzhou Feilong vacuum air quenching furnace is suitable for the vacuum heat treatment of high-speed steel, hot and cold working mold steel, stainless steel, elastic alloy, high temperature alloy, magnetic materials and titanium alloy, as well as vacuum brazing and vacuum degassing, the operation process and process parameters (temperature, vacuum, air cooling pressure, process time) are automatically controlled, with the user can call, edit and store the process program function, with safety self-locking protection, fault self-diagnosis and alarm function.
Vertical gas quenching furnace
Zhengzhou Feilong vertical gas quenching furnace is mainly used for high pressure gas quenching of rod and shaft parts such as high speed steel, industrial mold steel, alloy structural steel, and annealing of magnetic materials and other processes.
Heat treatment automation line
Conventional heat treatment automatic production line based on the central computer control system, a collection of box-type quenching furnace, box-type tempering furnace, loading and unloading table, forklift rail car, sinking fast quenching tank, closed cooling tower and other equipment, with the central integrated control cabinet as the control center, forklift-type heat treatment automatic production line, can be carried out carbon steel, alloy structural steel, low carbon steel and medium carbon steel materials such as quenching, tempering It can perform heat treatment processes such as quenching, tempering, normalizing, annealing, aging and solution heat treatment of carbon steel, alloy structural steel, low carbon steel and medium carbon steel, etc. It has high production efficiency, low labor intensity, low labor cost, stable quality of heat treatment products, greatly improves production efficiency and saves electricity, and meets the rapid production needs of large volume heat treatment parts.
Vacuum Carburizing Oil Quenching Furnace
Vacuum carburizing and vacuum oil quenching process seamlessly switch at any time to improve equipment utilization and truly realize multi-use function.
Vacuum Carburizing Gas Quenching Furnace
Vacuum carburizing gas quenching furnace is loaded into the vacuum furnace, vacuumed and heated to purify the furnace, and after reaching the carburizing temperature, hydrocarbons (such as propane, etc.) are introduced for carburizing, and after a certain period of time, the carburizing agent is cut off, then vacuumed or filled with nitrogen for diffusion, and the cycle of carburizing and diffusion is operated. By vacuum carburizing by pulse method, it can make blind holes and small holes to obtain uniform carburizing layer. Vacuum carburizing can realize high temperature and fast carburizing (1050℃), which can greatly shorten the carburizing time and improve the production efficiency. The carburizing layer of the workpiece in the same furnace is uniform, no internal oxidation in the carburizing layer, no fatigue source, which greatly improves the service life of the parts.
