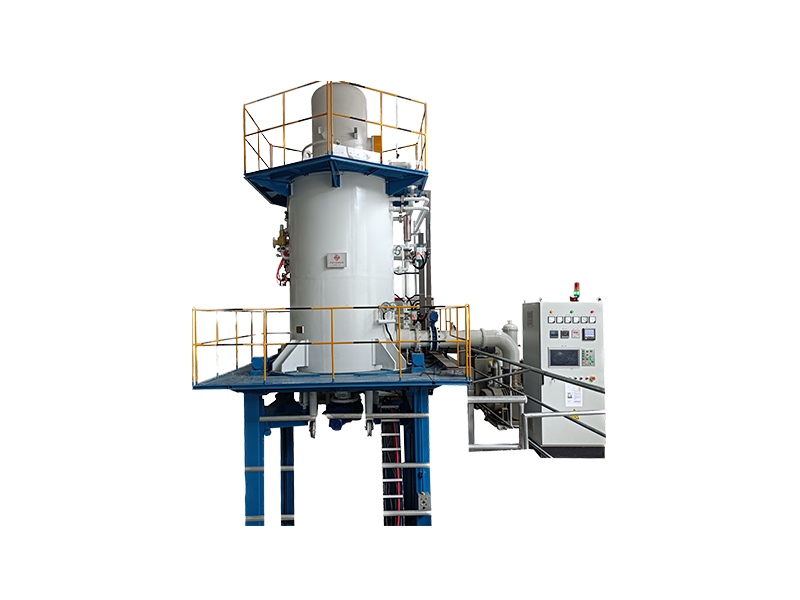

Vertical gas quenching furnace
Zhengzhou Feilong vertical gas quenching furnace is mainly used for high pressure gas quenching of rod and shaft parts such as high speed steel, industrial mold steel, alloy structural steel, and annealing of magnetic materials and other processes.
Keywords:
Classification:
Real air quenching furnace
Product description
Zhengzhou Feilong vertical gas quenching furnace is mainly used for high pressure gas quenching of rod and shaft parts such as high speed steel, industrial mold steel, alloy structural steel, and annealing of magnetic materials and other processes.
| Model | FZQL-160 | FZQL-200 | FZQL-240 | FZQL-300 | FZQL-360 |
| Effective working area(mm) | 800×1000 | 900×1000 | 1000×1000 | 1300×1000 | 1500×1000 |
| Furnace loading capacity | 700kg | 850kg | 1000kg | 1500kg | 2000kg |
| Heating power | 160KW | 200KW | 240KW | 300KW | 360KW |
| Maximum temperature | 1320℃ | ||||
| Temperature uniformity | ±5℃ | ||||
| Ultimate vacuum level | ≤4×10-1paor≤8×10-⁴pa | ||||
| Pressure rise rate | <0.67pa/h | ||||
| Air quenching pressure | 6I10bar | ||||
| Hot chamber structure | Round | ||||
| Hot chamber material | Graphite/Molybdenum metal and heat resistant stainless steel | ||||
| Control method | Manual / Automatic | ||||
Zhengzhou Feihong vertical gas quenching furnace features: 1. reasonable space modular design, fast evacuation and minimum quenching gas 2. the use of high-quality graphite hard felt / metal screen optional, 3. heating elements 360 degrees radiation heating, gas quenching nozzle 360 degrees uniform staggered distribution 4. multi-dimensional gas circulation cooling mode (vertical axial) 5. vacuum partial pressure / low temperature convection heating / graded isothermal quenching function 6. large area heat exchanger 7. Circulating fan can be started in vacuum (fan starts in advance when heating is completed, instantaneous filling of gas to obtain the highest flow rate and highest cooling intensity). 8. Open or closed internal circulation water cooling system. 9.
