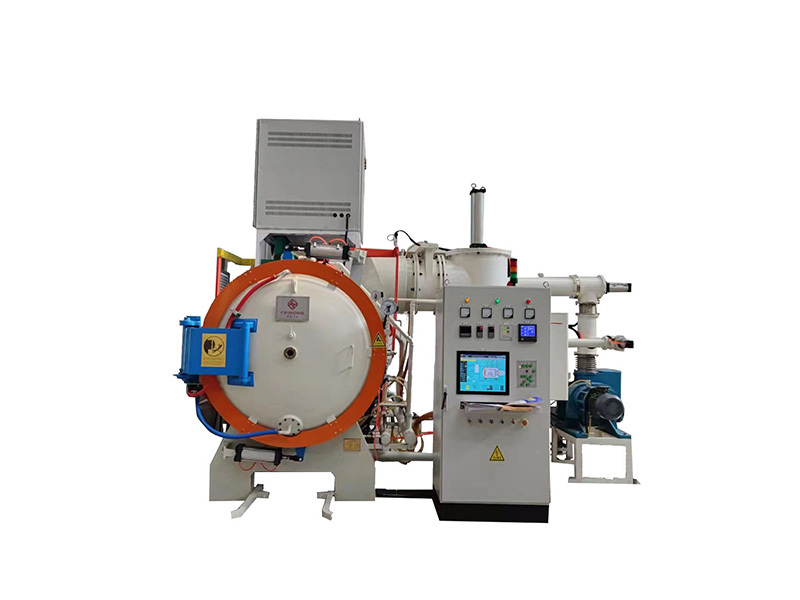

Real air quenching furnace
Zhengzhou Feilong vacuum air quenching furnace is suitable for the vacuum heat treatment of high-speed steel, hot and cold working mold steel, stainless steel, elastic alloy, high temperature alloy, magnetic materials and titanium alloy, as well as vacuum brazing and vacuum degassing, the operation process and process parameters (temperature, vacuum, air cooling pressure, process time) are automatically controlled, with the user can call, edit and store the process program function, with safety self-locking protection, fault self-diagnosis and alarm function.
Keywords:
Classification:
Real air quenching furnace
Product description
Zhengzhou Feilong vacuum air quenching furnace is suitable for the vacuum heat treatment of high-speed steel, hot and cold working mold steel, stainless steel, elastic alloy, high temperature alloy, magnetic materials and titanium alloy, as well as vacuum brazing and vacuum degassing, the operation process and process parameters (temperature, vacuum, air cooling pressure, process time) are automatically controlled, with the user can call, edit and store the process program function, with safety self-locking protection, fault self-diagnosis and alarm function.
| Model | FZQ-80 | FZQ-120 | FZQ-150 | FZQ-200 | FZQ-240 | FZQ-300 |
| Effective working area(mm) | 600×400 ×400 |
750×500 ×500 |
900×600× 600 |
1000×700 ×700 |
1200×800× 800 |
1500×900 ×900 |
| Furnace loading capacity | 200kg | 300kg | 500kg | 750kg | 1000kg | 1500kg |
| Heating power | 80KW | 120KW | 150KW | 200KW | 240KW | 300KW |
| Maximum temperature | 1320℃ | |||||
| Temperature uniformity | ±5℃ | |||||
| Ultimate vacuum level | ≤4×10- ¹paor≤8×10-4pa | |||||
| Pressure rise rate | <0.6pa/h | |||||
| Air quenching pressure | 6\10112\16 |20bar | |||||
| Cooling gas | N₂/Ar | |||||
| Furnace material | Graphite/Molybdenum Metal | |||||
| Control method | Manual / Automatic | |||||
| Hot zone structure | Round / Octagonal | |||||
Zhengzhou Feilong real air quenching furnace features: 1. heat exchanger using purple copper finned tube, fast cooling 2. air nozzle uniform cooling chamber, workpiece quenching uniformity, workpiece deformation is small. 3. heating element 360 degrees uniform heat chamber, furnace temperature uniformity is high. 4. heating chamber soft felt, hard felt, metal screen optional. 5. high production efficiency, energy saving, reduce operating costs. 6. simple operation, stable mechanical action, air-cooled Motor inverter start, automatic fault alarm. Self-locking protection, fault self-diagnosis and alarm function.
